HDC-HE-06 Rectangular Heavy Duty Connector 6 Core Insert Screw Terminal 16A 500V HE6 Top/Side Entry Hood Industrial Cable Plug
- Brand Name: WKDQ
- Origin: CN(Origin)
- Certification: CE
- Certification: RoHS
- Model Number: HDC-HE-6 HE-6 HE6
- Voltage: 415V
- Model: HDC-HE-06 HE-06 HE06
- Features: top line and side outlet
- Current: 16A
- Voltage: 500V
- Connecting pin material: copper
- Surface treatment: silver plating
- Connection: screw connection
- Shell material: Die cast aluminium alloy
- Outer surface: high temperature powder coating
- Original seal: nitrile rubber

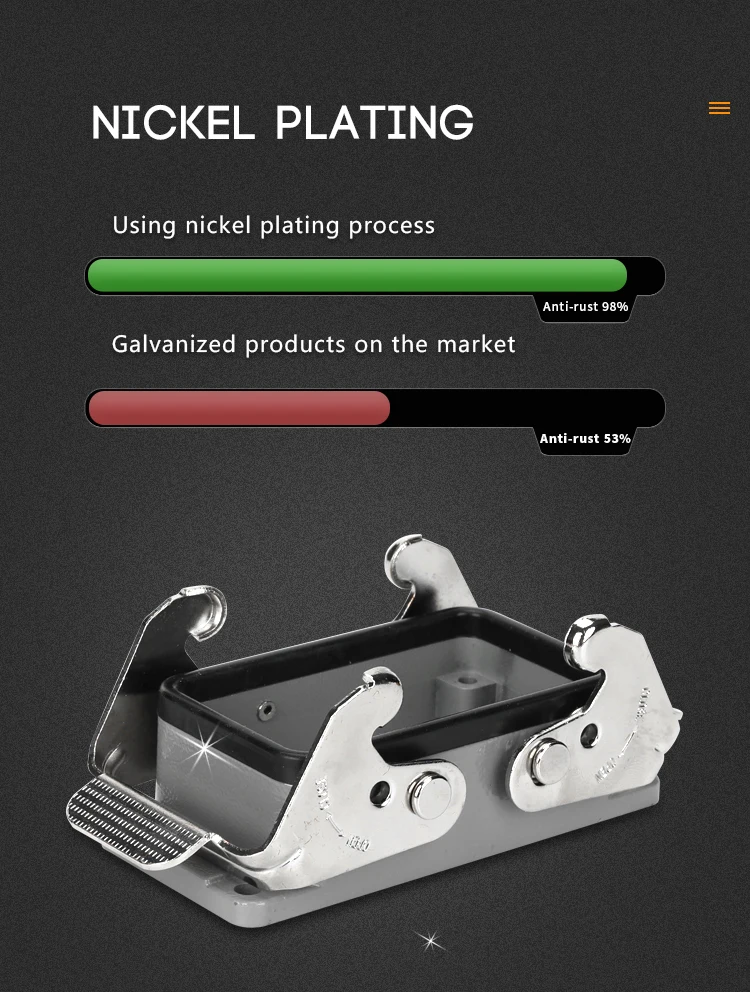

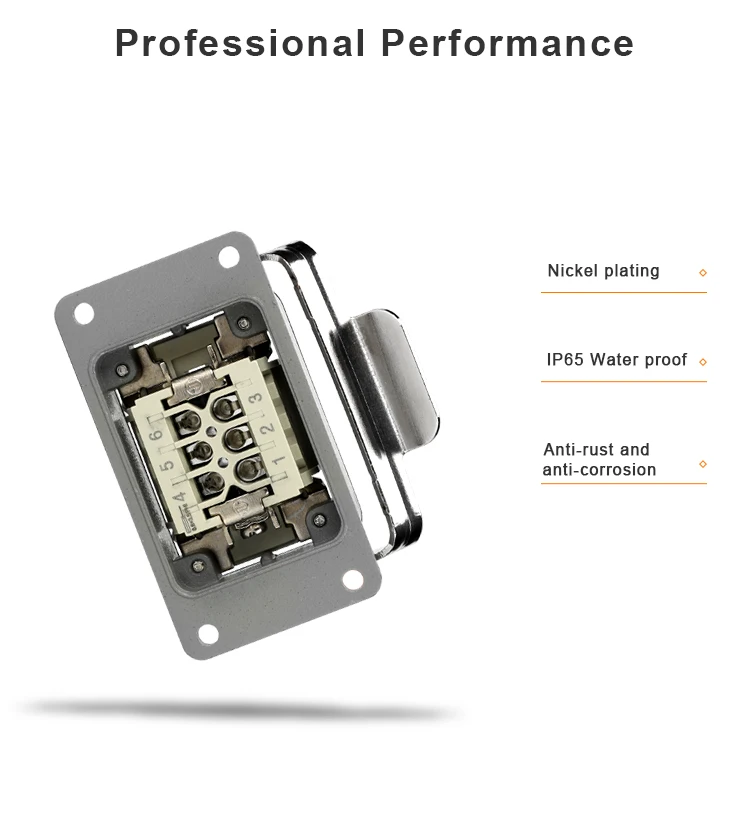

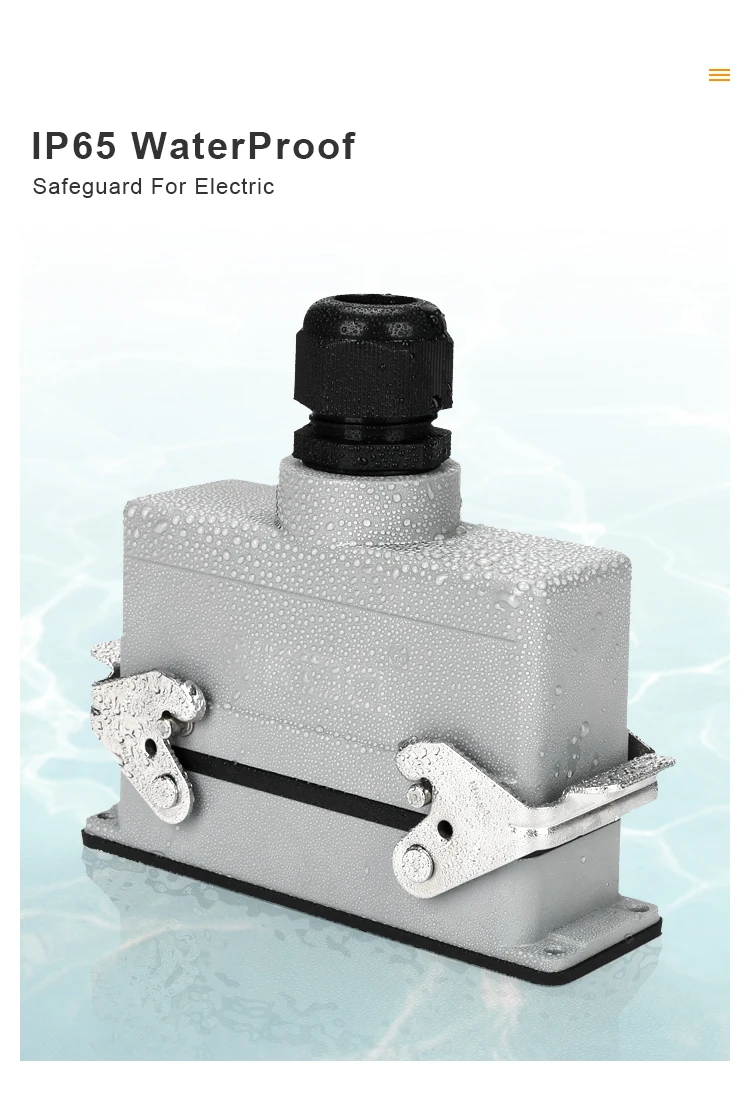

- Protection level: IP65
WHE Series Heavy Duty Connector 6 Pins WHE06 Side Entry/Top Entry
DESCRIPTION
Heavy Duty Power Connectors are ideal for industrial applications with harsh requirements. It can help provide a solution to the wide range of needs in industrial connectors in mechanical and plant engineering. Working together with cable entry connector, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.
Each Heavy Duty Power Connector includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.
-
Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
-

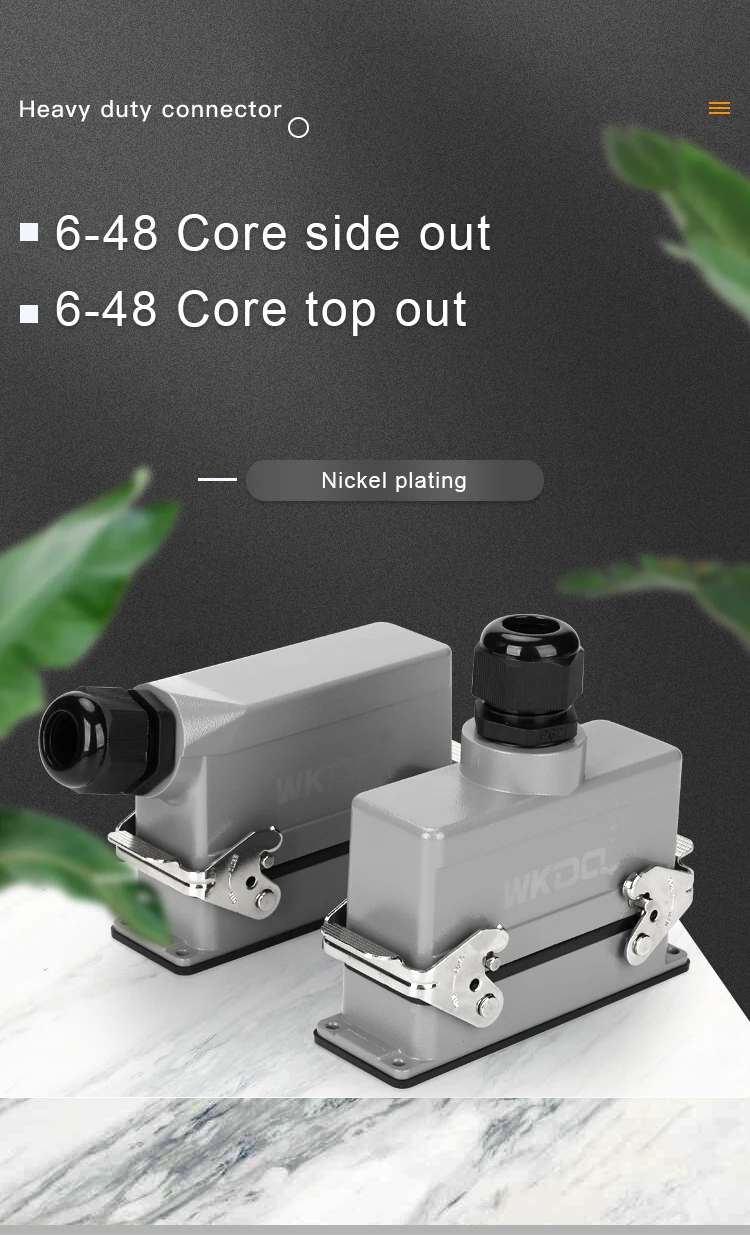

Available in side or top cable entry.
-
Bulkhead mounting housings with water-proof performance.
-
Cable gland provide entry protection.
-
No special tools required (Field Termination), high number of cycles, low actuation force, Robust/Durable heavy duty protection.
TECHNICAL PARAMETERS
|
No. |
PART NO. |
Entry Side |
Number of contact |
A |
B |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
|
Heavy-duty connector |
|
|||||||||
|

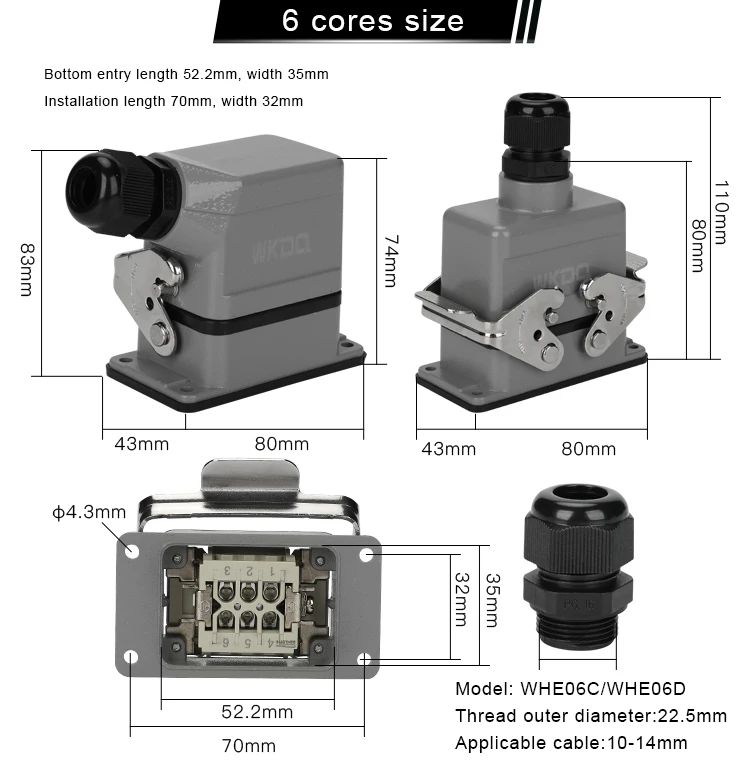

1 |
Side entry |
6 |
80.0 |
43.0 |
52.2 |
35.0 |
32.0 |
70.0 |
4.3 |
|
|
2 |
Top entry |
6 |
80.0 |
43.0 |
52.2 |
35.0 |
32.0 |
70.0 |
4.3 |
|
|
3 |
Side entry |
10 |
93.0 |
43.0 |
65.2 |
35.0 |
32.0 |
83.0 |
4.3 |
|
|
4 |
Top entry |
10 |
93.0 |
43.0 |
65.2 |
35.0 |
32.0 |
83.0 |
4.3 |
|
|

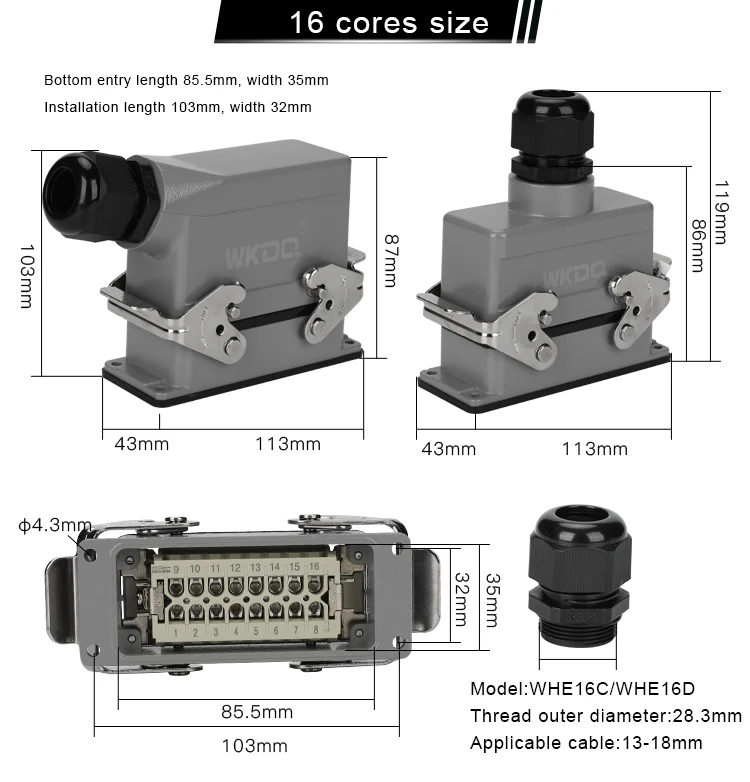

5 |
Side entry |
16 |
113.0 |
43.0 |
85.5 |
35.0 |
32.0 |
103.0 |
4.3 |
|
|
6 |
Top entry |
16 |
113.0 |
43.0 |
85.5 |
35.0 |
32.0 |
103.0 |
4.3 |
|
|

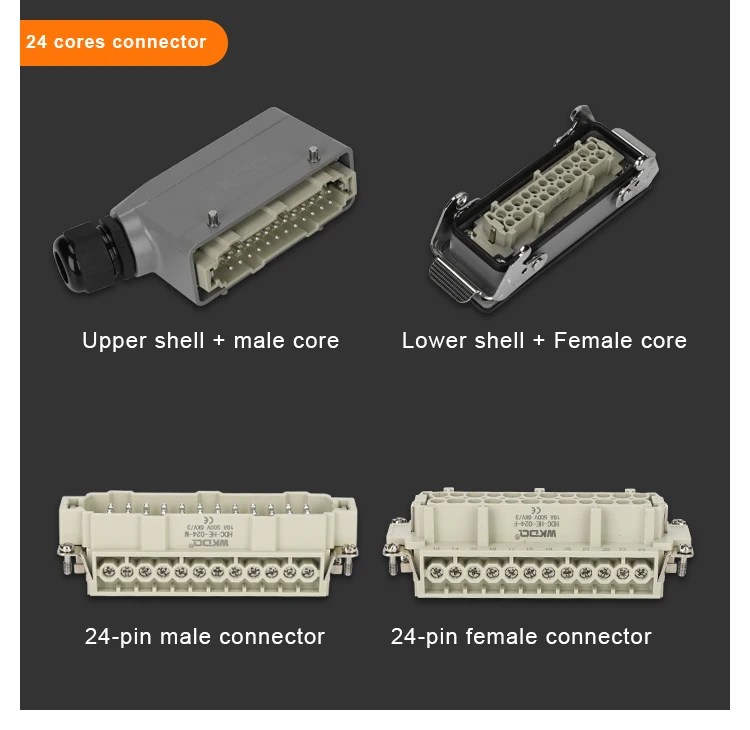

7 |
Side entry |
24 |
140.0 |
43.0 |
112.2 |
35.0 |
32.0 |
130.0 |
4.3 |
|
|
8 |
Top entry |
24 |
140.0 |
43.0 |
112.2 |
35.0 |
32.0 |
130.0 |
4.3 |
|
|

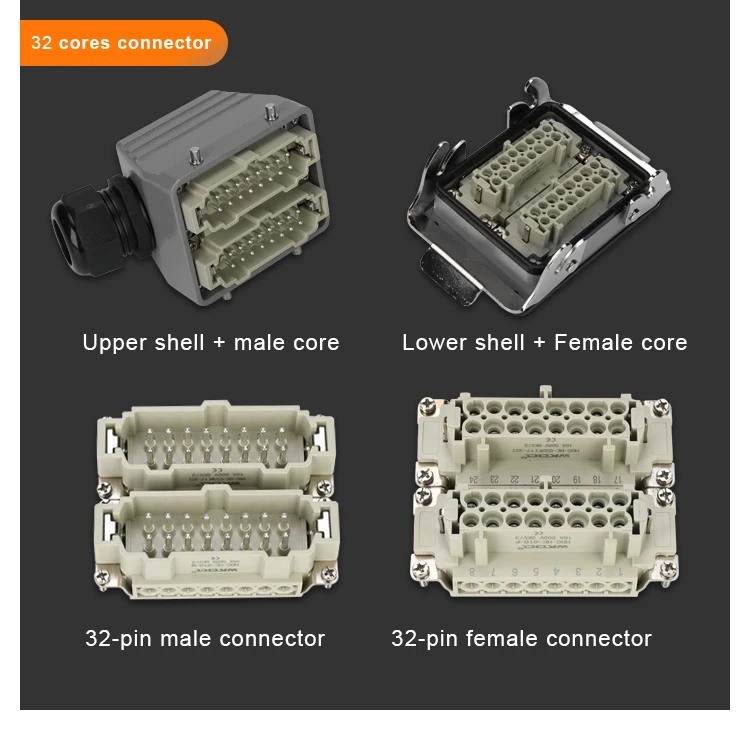

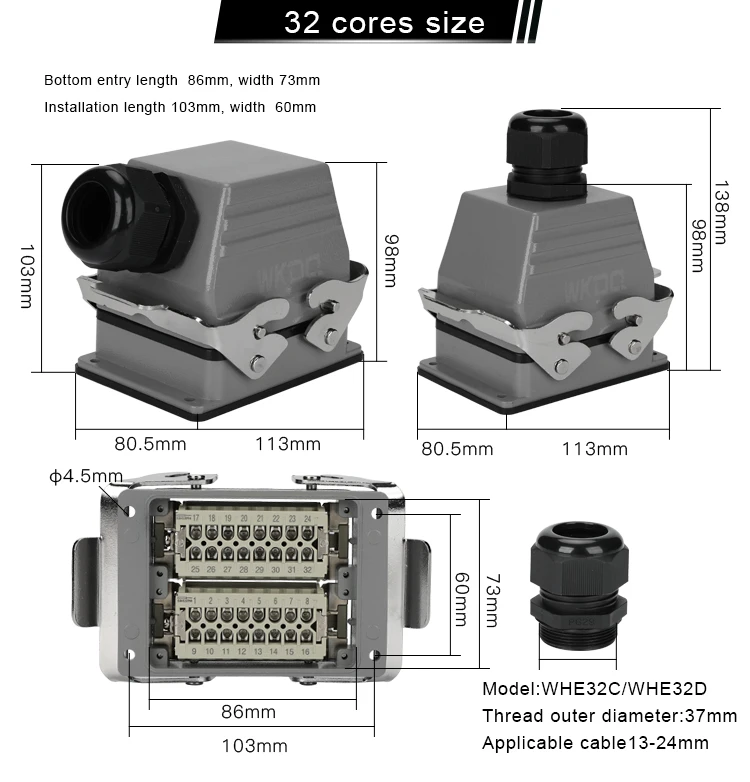

9 |
Side entry |
32 |
113.0 |
80.5 |
86.0 |
73.0 |
60.0 |
103.0 |
4.5 |
|
|
10 |
Top entry |
32 |
113.0 |
80.5 |
86.0 |
73.0 |
60.0 |
103.0 |
4.5 |
|
|

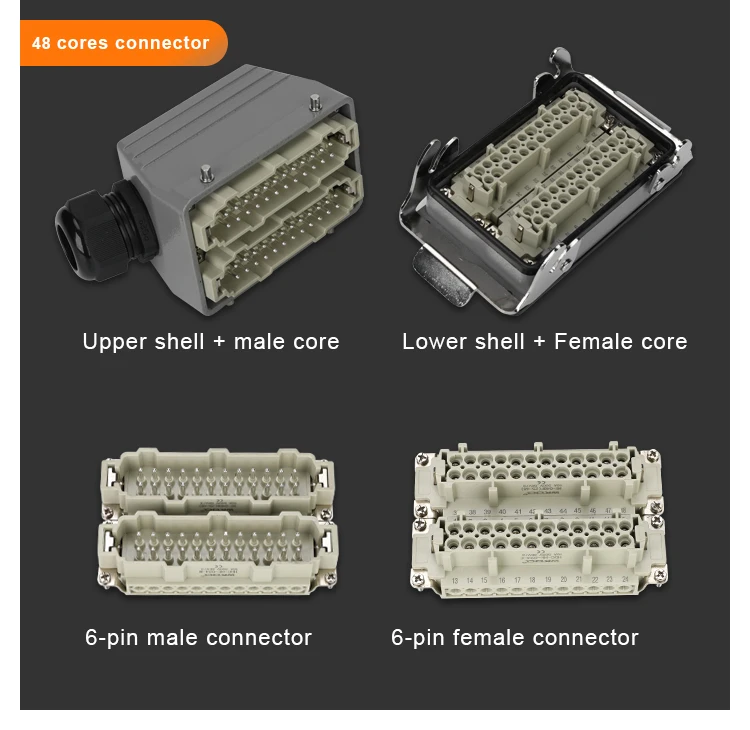

11 |
Side entry |
48 |
140.0 |
80.5 |
113.0 |
73.0 |
60.0 |
130.0 |
4.5 |
|
|

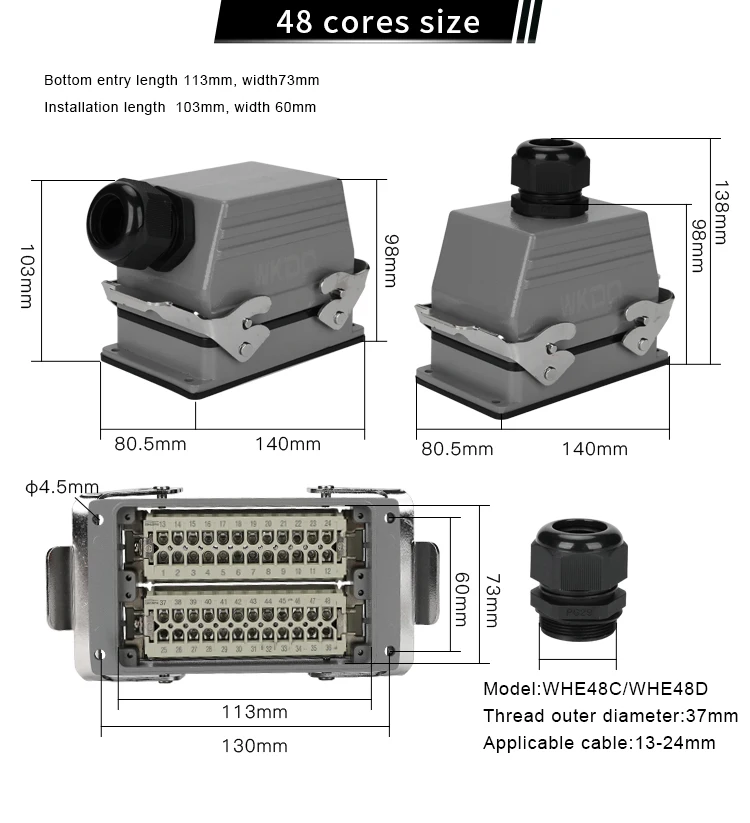

12 |
Top entry |
48 |
140.0 |
80.5 |
113.0 |
73.0 |
60.0 |
130.0 |
4.5 |
|
-
